Adding Touch to a Micro OLED Module: Resistive, Capacitive or Nothing at All
Touch is the first input method people ask for on a small display module and often the wrong one to add. In a pair of AR glasses the display sits behind optics, the user is wearing the device, and the surface they would have to touch is either inside the optical path or somewhere on the temple. Adding a touch layer costs optical transmission, adds a stack-up and introduces a controller that must not interfere with the display interface. The decision is therefore not which touch technology is best, but whether touch belongs on the panel, on the frame, or nowhere at all.

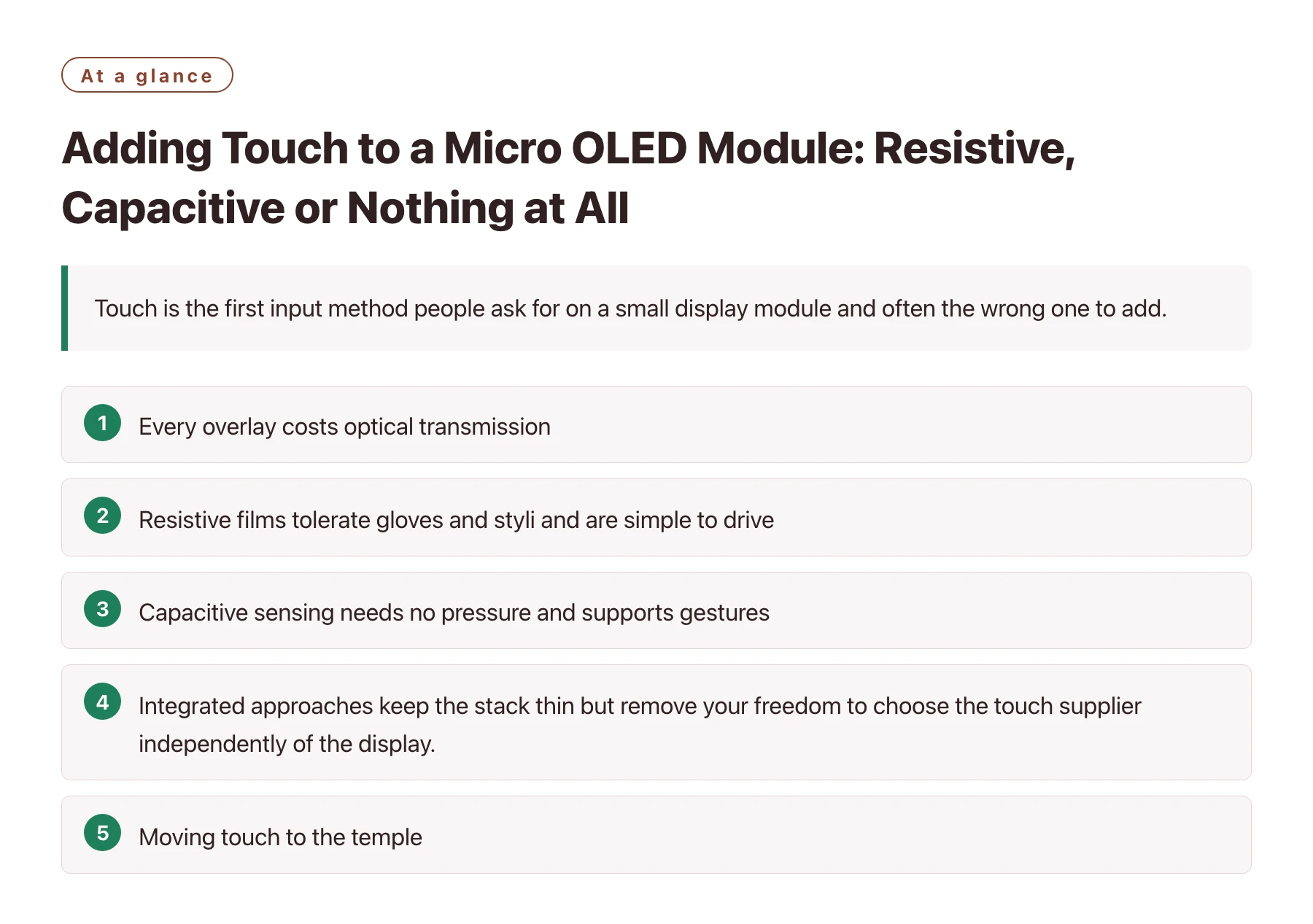

Key takeaways
- Every overlay costs optical transmission, and on a near-eye display that loss is paid twice, once on the way in and once on the way out.
- Resistive films tolerate gloves and styli and are simple to drive, but they add a flexible layer directly in the optical path.
- Capacitive sensing needs no pressure and supports gestures, at the cost of a controller, an electrode stack and sensitivity to water and gloves.
- Integrated approaches keep the stack thin but remove your freedom to choose the touch supplier independently of the display.
- Moving touch to the temple, the frame or an external device often gives a better user experience than touching the optics at all.
Touch is attractive because it removes hardware. No buttons, no scroll wheel, no companion app, just a surface that responds. On a phone that reasoning works. On a head-mounted display it usually does not, because the surface the user can reach is not the surface showing the image.
There is also an inventory problem. A touch layer has to work with the display module, the mechanical housing and the firmware, which means three suppliers or one integrated module. Either choice is defensible, but the trade-offs are different and they are decided much earlier than most teams expect.
This article looks at the three ways touch is normally added around a small micro OLED, what each one costs in the optical stack, and a set of questions that settle the decision before a mechanical design is frozen.
What touch has to survive in a wearable
A display that is worn is touched in conditions a phone never sees. Hands may be gloved. The device may be used in rain or in a cold room. The user may be adjusting the fit while pressing. Any touch surface has to keep working through all of that, or the interaction design has to accept that it will not.
The second constraint is the optical path. Anything placed between the panel and the eye changes what the eye receives, and a transparent conductive layer is not perfectly transparent. A few percent of transmission lost on the way out is a few percent of the brightness budget spent, which is a real cost on a device that already struggles with daylight.
The third constraint is electrical noise. A capacitive sensor measures small changes in capacitance, and it does so next to a display interface, a radio and a battery. The interaction between those systems is manageable but it has to be designed, not discovered [1]. If you want to see the thickness budget a module in this class actually leaves for an overlay, View product details for the 0.23-inch 640x400 micro OLED and compare its stack against your mechanical clearance.
Three ways to add touch, and what each one costs
| Approach | Where it works well | The penalty you accept |
|---|---|---|
| Resistive film | Gloved hands, stylus input and environments where a firm press is natural [2] | A flexible layer in the optical path, lower transmission, and mechanical wear at the point of repeated pressing |
| Projected capacitive overlay | Bare-finger gestures on a flat surface with a clean front face [3] | An extra substrate and bonding step, a controller that needs tuning, and reduced sensitivity through gloves or water |
| Integrated on-cell or in-cell touch | Thin assemblies where the stack height is the dominant constraint | Less freedom to choose the touch and display suppliers independently, and a longer qualification cycle |
| Remote input surface | Frames, temples and tethered controllers where the optics stay untouched | Additional mechanical parts and firmware work, in exchange for no optical loss at all |
| No touch at all | Viewers used with existing controls, such as camera viewfinders | Interaction must be designed around buttons, voice or host software rather than a surface |
Two consequences that are easy to miss
Adding touch changes more than the bill of materials. It changes the mechanical stack, the firmware architecture and the optical budget, and it does so in ways that are difficult to reverse later.
An overlay changes the optical stack
A touch layer adds at least one substrate and one or two adhesive layers, which increases the distance between the panel and the first optical element. If the optical design assumed a particular panel position, that extra millimetre or two changes focus, and correcting it may mean moving a lens or adding a spacer.
It is much cheaper to decide the touch question before the optics are fixed. If a touch layer is a possibility, leave the clearance in the mechanical design and treat the layer as optional. If the decision comes later, expect to re-run the optical tolerance analysis rather than simply inserting a part.
The alternative is touch somewhere else
For many near-eye products, the better interaction is a capacitive strip on the temple, a small joystick on the frame or a physical control on a tethered unit. These keep the optical path clean, which preserves brightness, and they put the control where the hand naturally rests rather than where the eye is looking.
This also simplifies qualification. A temple-mounted sensor is a mechanical and electrical component with no optical role, so it can be changed without re-testing the display. Splitting the two functions gives the product team freedom it would otherwise lose.
Questions that settle the touch decision
- Who touches the device and with what?Bare fingers, gloved hands and styluses imply different technologies. Write down the realistic worst case before comparing parts.
- How much transmission can the optics give up?Put a number on it. If the optical budget has no spare transmission, an overlay is already ruled out and the discussion moves to the frame.
- What does the firmware have to own?A touch controller adds a driver, gesture handling and calibration. Decide whether that belongs in the product team or in the module supplier's scope.
- Can the mechanical stack absorb the extra thickness?Check the distance from panel to first optical element and confirm that adding two layers still meets the focus tolerance.
- Does the interaction survive cleaning and weather?Water on a capacitive surface and solvents on an overlay are both real conditions. Test the intended materials rather than the generic technology.
The most common mistake is treating touch as a feature to add once the display works. By then the optics, the housing and the firmware are all designed around a specific stack, and a touch layer has to fight all three. Ask the question at the same time as the display interface question, and be willing to accept the answer that keeps the optics clean.
Sources
Frequently asked questions
Can touch be added to a micro OLED module after the design is finished?
It can, but it is rarely clean. A later overlay changes the optical stack height, which affects focus, and it adds a controller and gesture handling to firmware that was not planned for them. If touch is even a possibility, keep clearance in the mechanical design from the beginning.
Is resistive or capacitive touch better for a wearable?
They solve different problems. Resistive works with gloves and styli and tolerates harsh handling, at the cost of optical transmission and mechanical wear. Capacitive supports light gestures and a clean front face but needs tuning and is less reliable through gloves or water. The choice follows from how the device is actually used.
Does a touch layer reduce display brightness?
Yes. Every transparent conductive layer and substrate reflects or absorbs some light, and on a near-eye display that loss is paid on the way through the optical path. The effect is design specific, so measure the assembled stack rather than relying on a nominal transparency figure.
What is the alternative to touching the display itself?
Move the control to the frame, a temple-mounted capacitive strip, or an external unit. This keeps the optical path untouched, which protects brightness and simplifies qualification, and it places the control where the hand naturally rests. Many near-eye products end up here after evaluating an overlay.
